BT3.SEP

This file was created on 23 Jun'03 0:43 by ChemSep v4.50
( C:\CHEMSEP\BT3.SEP)


INDEX: Input Iteration history Tables Graphs


Input

 Column C:\CHEMSEP\BT3.SEP

 Components:
  Benzene
  Toluene

 Operation:
  Simple Distillation
  Total (Liquid product) Condenser
  Partial (Liquid product) Reboiler
  10 Stages
  Feeds to stages 5

                           |----|
                 |------>-----| |
                 |         |1 | |
              |--|------|  |--|-|
              |  |   |----<-------->-
              |--|---|--|
              |--|---|--|
  ----->----5-|--|---|--|
              |--|---|--|
              |--|---|--|
              |  |---|-----<----|
              |------|--|    |--|-|
                     |--->---------->-
                           10|----|

 Properties:
  Raoult's law K model
  Antoine Vapour pressure
  None Enthalpy
   Enthalpy reference state Vapour
   Enthalpy reference temperature 25.00 ( C)
   Formation enthalpies Excluded
   Exergy surroundings temperature 25.00 ( C)

 Reactions:

 Specifications:

  Column pressure
   Condenser pressure 1.115 (bar)
   Top pressure 1.115 (bar)

  Default efficiency = 1.000 (-)

  Feed                                 1
   Stage                               5
   Pressure (bar)                  1.115
   Enthalpy (kJ/kmol)
   Vapour fraction (-)            0.0000
   Temperature ( C)
   Component flows (mol/s)
   Benzene                         5.874
   Toluene                         5.874

  Condenser
   Reflux ratio = 10.00 (-)
   Initialization guess: *

  Reboiler
   Bottom product flow rate = 5.874 (mol/s)
   Initialization guess: *

 Solve options:
  Automatic Initialization
  Newton's method
  Flow Step limit 0.5000 (-)
  Temperature Step limit 10.00 ( C)
  Composition Step limit 1.000 (-)
  Accuracy = 0.0001
  Maximum iterations = 30
  Feeds type = Stage below
  User program = CSW

Iteration history

ChemSep (TM) - Flash/Col2 v4.30s
Copyright(c) H.Kooijman and R.Taylor, 1988-2001
Checking data file C:\CHEMSEP\BT3.SEP
 Reading configuration
 Reading component property libraries
 Reading thermodynamic property options
 Reading specifications
 Checking Component Data
  Benzene
  Toluene
 Determining feed conditions
Generating initial flow profiles
Generating initial composition profiles
 Starting Newtons method
Ctrl-Break will terminate execution

      Iteration              Error

         0                   9.5880E-04
         1                   4.5167E-02
         2                   4.9231E-03
         3                   1.1760E-05
Convergence obtained in 3 iterations
 Generating equilibrium data
c:/chemsep/bin/go-col2.exe done

Tables

Mass and Energy Balances

 Stream / Apparatus               Mass (mol/s)   Energy (MW)    Exergy (MW)

 Feed 1                            11.75          0.0000         -0.8236
 Top                               -5.873         -0.0000        0.3534
 Bottom                            -5.874         -0.0000        0.4625
 Condenser Duty                                   0.0000         0.0000
 Reboiler Duty                                    0.0000         0.0000
                                  ----------- +  ----------- +  ----------- +
 Balance                           -3.958E-05     0.0000         -0.007768

 Thermodynamic efficiency = -0.0000



 Component discrepancies (mol/s)

 Benzene                           -2.209E-05
 Toluene                           -1.678E-05

 Stage Temperature Pressure              Flow rates (mol/s)
          ( C)         (bar)      Liquid     Vapour     Feed     Product

    1 84.11      1.115      58.73                            5.873      L
    2 84.92      1.115      58.73      64.60
    3 86.61      1.115      58.73      64.60
    4 89.72      1.115      58.73      64.60
    5 94.41      1.115      70.48      64.60      11.75
    6 99.53      1.115      70.48      64.60
    7 104.8      1.115      70.48      64.60
    8 108.8      1.115      70.48      64.60
    9 111.3      1.115      70.48      64.60
   10 112.7      1.115                 64.60                 5.874      L

 Profile for Toluene

  Stage     Liquid (-)          Vapour (-)          K  (-)

      1     0.02717             0.01084             0.3990
      2     0.06626             0.02717             0.4101
      3     0.1445              0.06270             0.4338
      4     0.2786              0.1339              0.4805
      5     0.4580              0.2557              0.5584
      6     0.6282              0.4112              0.6547
      7     0.7788              0.5968              0.7663
      8     0.8822              0.7612              0.8628
      9     0.9418              0.8740              0.9280
     10     0.9728              0.9389              0.9652

 Profile for Toluene

  Stage     Liquid (-)          Vapour (-)          K  (-)

      1     0.02717             0.01084             0.3990
      2     0.06626             0.02717             0.4101
      3     0.1445              0.06270             0.4338
      4     0.2786              0.1339              0.4805
      5     0.4580              0.2557              0.5584
      6     0.6282              0.4112              0.6547
      7     0.7788              0.5968              0.7663
      8     0.8822              0.7612              0.8628
      9     0.9418              0.8740              0.9280
     10     0.9728              0.9389              0.9652

 Stream                     Feed 1      Top         Bottom

 Stage                      5           1           10
 Pressure (bar)             1.115       1.115       1.115
 Vapour fraction (-)        0.0000      0.0000      0.0000
 Temperature ( C)           95.60       84.11       112.7
 Enthalpy (kJ/kmol)         0.0000      0.0000      0.0000
 Entropy (J/kmol/K)         2.352E+05   2.018E+05   2.641E+05

 Mole flows (mol/s)
 Benzene                    5.874       5.714       0.1600
 Toluene                    5.874       0.1596      5.714

 Total molar flow           11.75       5.873       5.874

 Mole fractions (-)
 Benzene                    0.5000      0.9728      0.02724
 Toluene                    0.5000      0.02717     0.9728

 Mass flows (kg/s)
 Benzene                    0.4588      0.4463      0.01250
 Toluene                    0.5412      0.01470     0.5265

 Total mass flow            1.0000      0.4610      0.5390

 Mass fractions (-)
 Benzene                    0.4588      0.9681      0.02319
 Toluene                    0.5412      0.03189     0.9768

Graphs

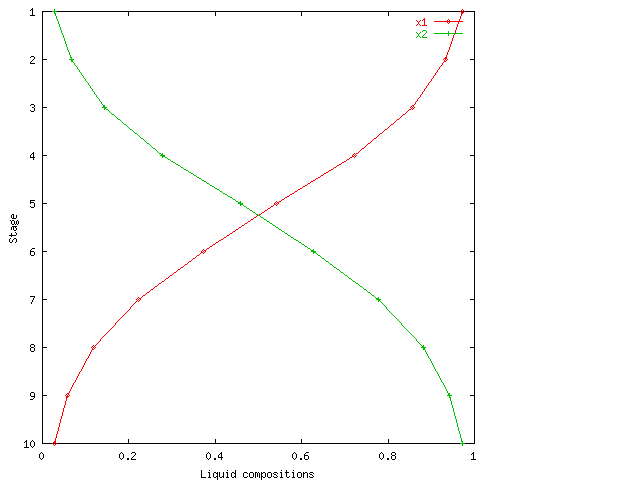

Liquid compositions

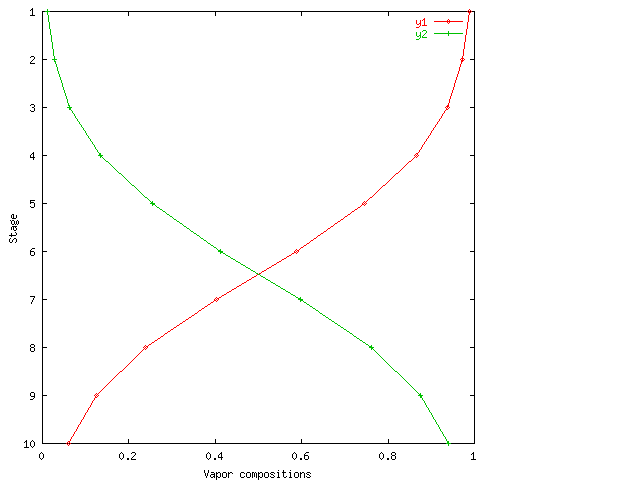

Vapor compositions

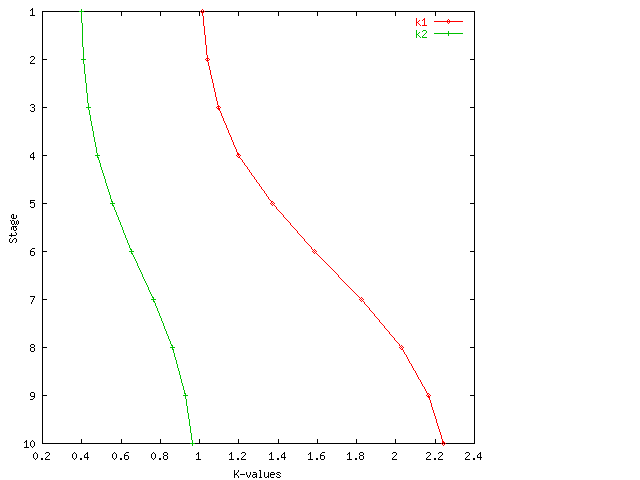

K-values

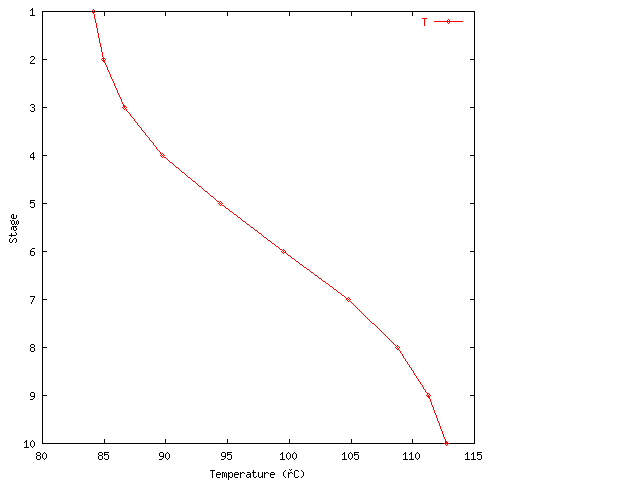

Temperatures

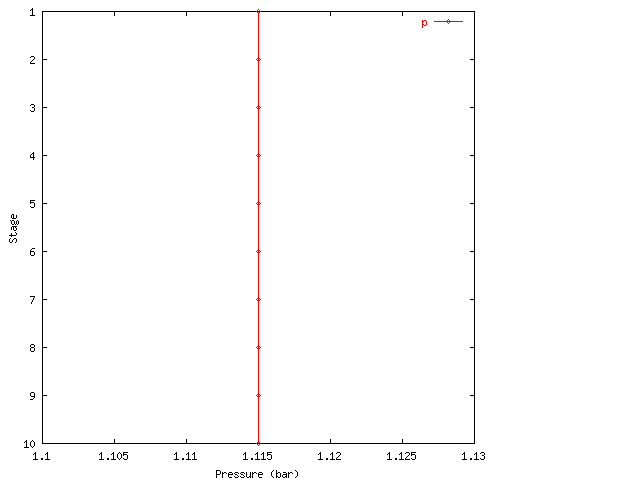

Pressures

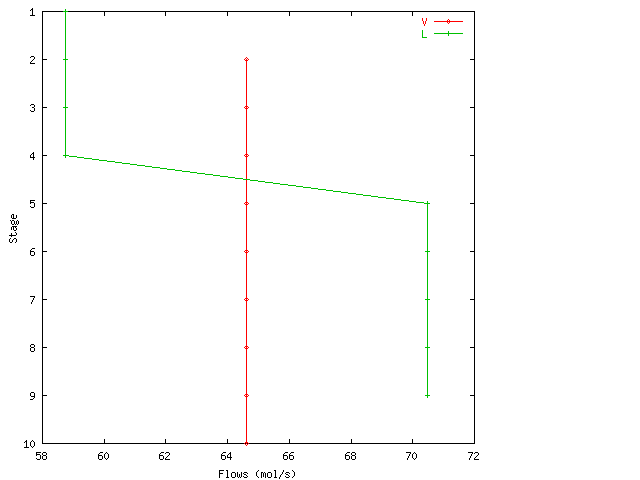

Flow profiles

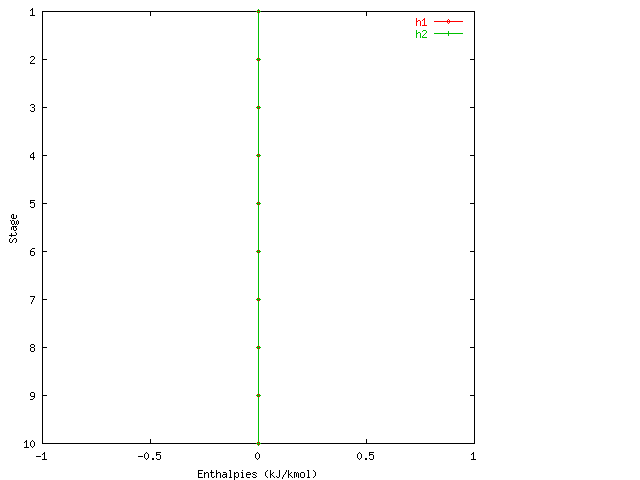

Enthalpies

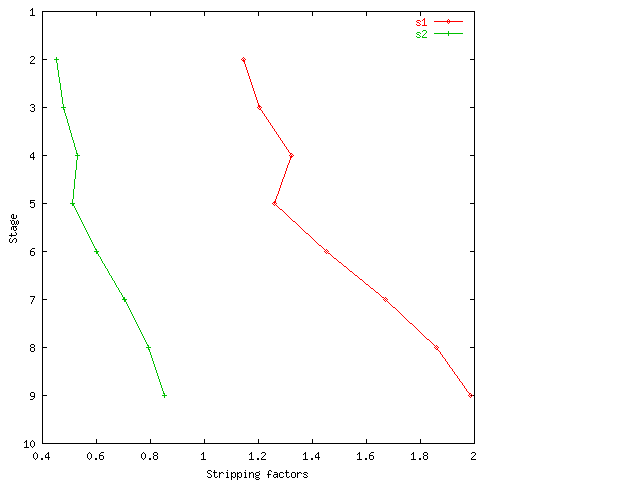

Stripping factors

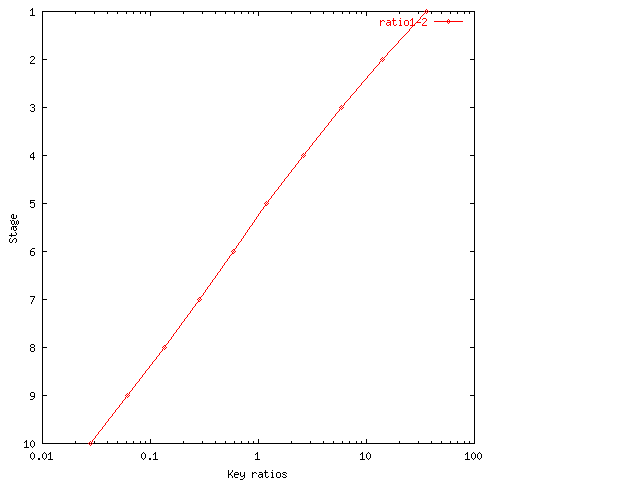

Key-ratios

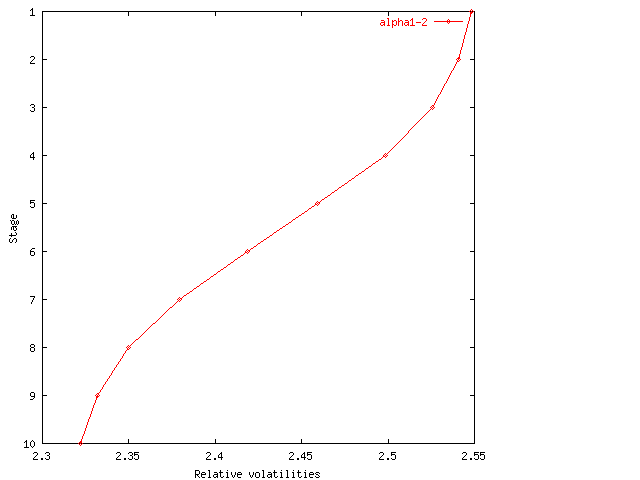

Relative volatilities

McCabe-Thiele
